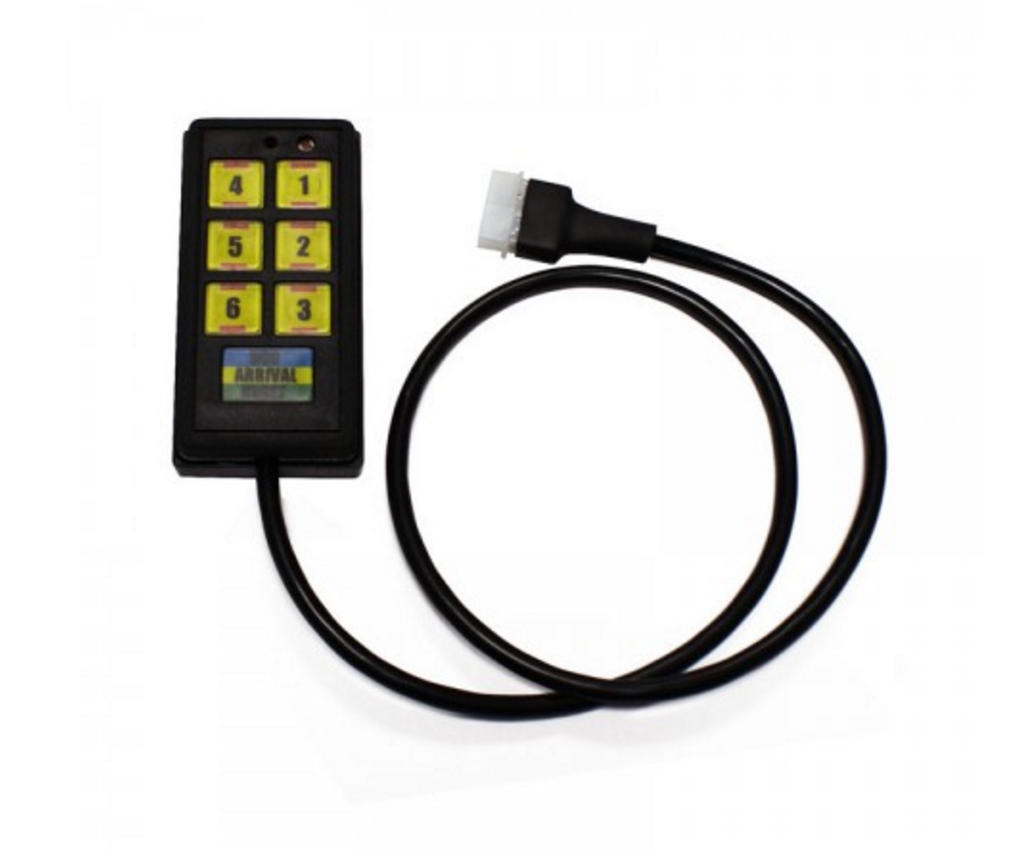

Micro Link Switch Panel
Micro Link Switch Panel
The Micro-Link system retains many of the features associated with the OPTI-LINK but in a package ideal for use in smaller vehicles with less emergency equipment such as General Purpose (GP) Police vehicles.
Features
- Individual switches with clear interchangeable legends. Bespoke legends are available to order. Switch positions may be interchanged by the installer.
- Switches 1– 6 are programmable for latching, momentary and mutually exclusive action. ‘999’ and ‘ARRIVAL’ are installer programmable to operate a pre programmed switch configuration. (No additional equipment is required to program the panel). Programming is protected by a lock code to prevent unauthorised alteration.
- Back lighting on all switches allows switch legends to be easily visible at night. Triple function ‘999’, ‘ARRIVAL’ and ‘RESET’ switch changes colour according to the switch function that is active, (‘999’ blue, ‘ARRIVAL’ red).
- Auto dim of active switches in low light conditions minimises driver distraction at night.
- Audible and visual warnings confirm to the operator that a switch is active.
- Sleep mode reduces power draw when the vehicle is not in use to prevent battery drain. The switch panel will then ‘wake’ up at a pre set voltage, for example, when the vehicle is started and the battery starts charging or when a switch is activated. An auxiliary relay operates in phase with the sleep mode feature allowing external equipment such as radios to be wired through it’s contacts.
- Low battery volts visual warning.
