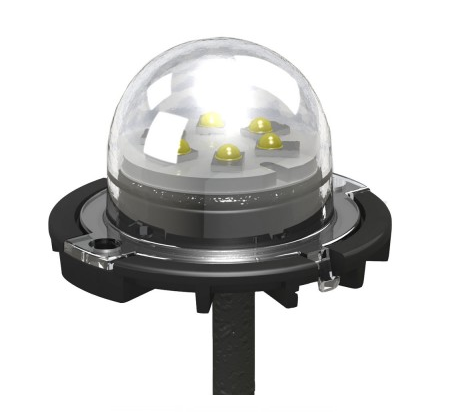

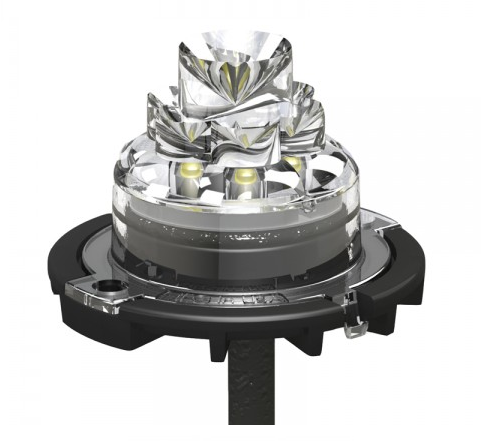

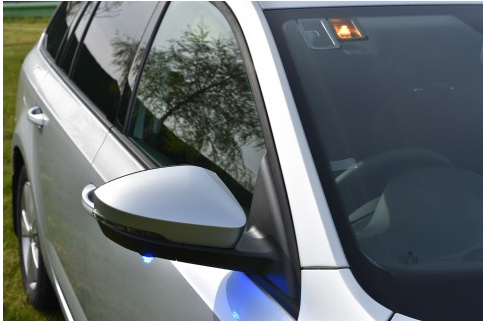

Only 7/8” (22mm) in height, this small LED lighthead is perfect for applications where size and intensity are critically important. Self-contained unit using an in-line combination lamp driver/flasher. Due to its small size it can also be surface mounted to anywhere outside of the vehicle.


  • 25 Scan-Lock™ flash patterns, including synchronise feature for alternating and synchronous flashing of multiple lamps
  • Mounts vertically or horizontally via two screws
  • Optional surface mount flanges available in Black or Chrome for models VTX609 and VTXD609 allow for mounting virtually anywhere
  • Simple installation with no separate lamp drivers, flashers, ballast or power supplies
  • 1” (25.4mm) hole makes this LED module backwards compatible to HA238 and standard 1” (25.4mm) Hideaway™ style lamps
  • Virtually no RFI/EMI noise emitted
  • Includes a 9’”(228.6mm) pre-wired and sealed 4-C/22 gauge cable with power, pattern and synchronise wires
